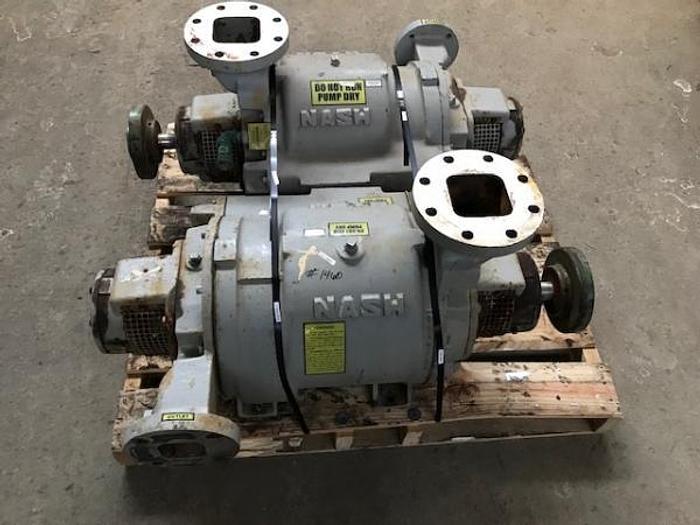

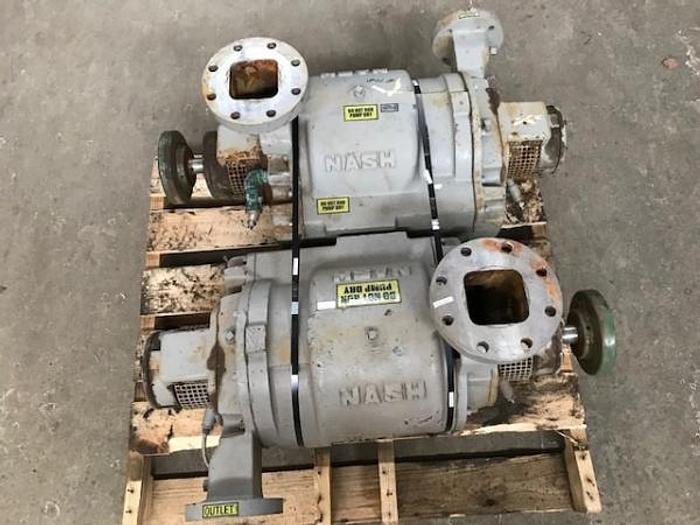

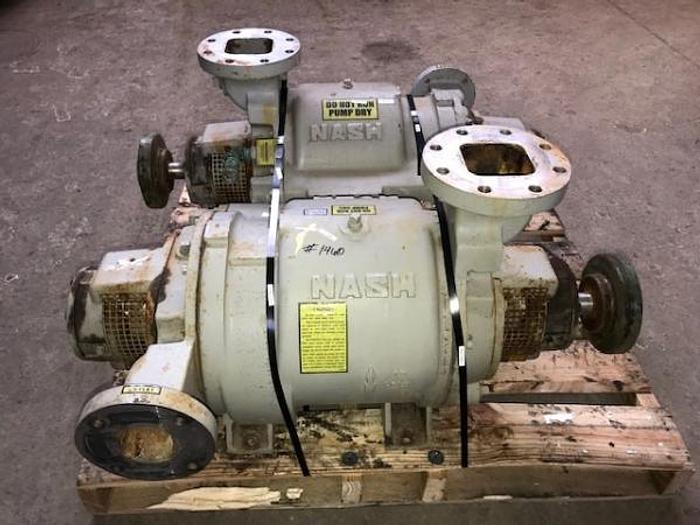

Nash TC-5 two Stage Vacuum Pump SS

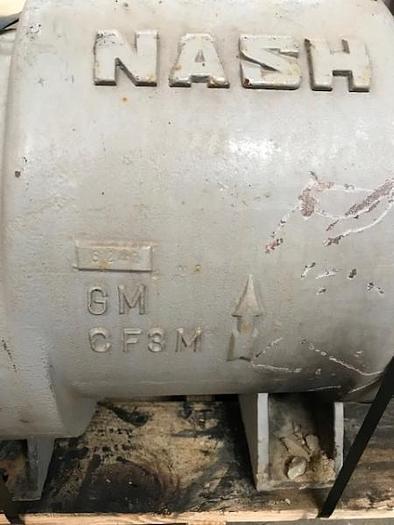

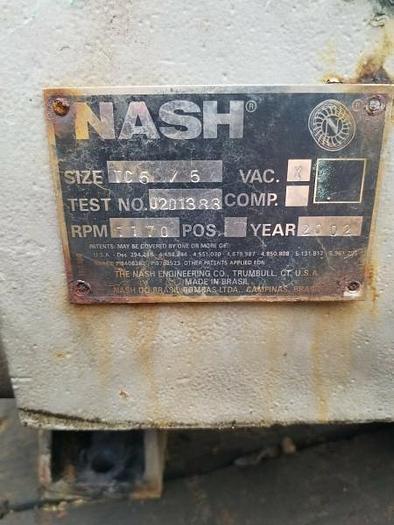

GardnerDenverNashTwoStageVacuumPumps ModelTC-5/5 UnitisCF3MStainlessSteel DesignedtoOperateinHarshConditions ThelineofTCtwostageliquidringpumpsisoursecondgenerationoftwostagepumpsdesignedspecificallyforthecondenserexhaustduty.Theintegraltwostageimpellerisdesignedtoreachvacuumlevelsdownto0.8inHgA(30mbarabs),approximately40%lowerabsolutepressurethanasinglestagepump. TCliquidringvacuumpumpswerecreatedforthechemical,petrochemical,andpowerindustries.TCpumps,withtheirintegraltwostagerotors,areabletocondensevaporsthatcomeofftheprocessandtorecoverordisposeofthem. ConicalPortingandRotorConfiguration Patentedin1932,Nash’svariableconicalportingdesignallowstheforceofcompressiontocountertheweightoftherotorandshafttohelpminimizeloadonbearingsduringoperation.Thevariableportingoptimizespumpperformanceacrosstheentireoperatingrange.Withconstantinnovation,Nash’spatenteddesignfeatures: Optionforlobepurgetominimizedamagefromerosionindutieswithsolidspresent Largedifferentialpressurecapability Gasscavengingfeatureminimizesslipofgasfromdischargetoinletimprovingcapacity,especiallyatdeepvacuum Highliquidcarryovertolerance Sidedischargetominimizechanceoffloodedstart Self-primingdesignmayalloweliminationofboosterpumpinrecirculatedsystems ReliableandEfficientwithProvenPerformance TCpumpsoffersuperiorperformanceandreliabilitythroughtheprovenreliableconicalliquidringpumpdesign.TheTC'srotorbladesareshroudedtoimprovestrengthandreliability. Patent-pendinganti-cavitationtechnologyisavailableinallTCmodelsandcandoubleusefulpumplifeincavitationproneoperations. ThetwostagesoftheTCpumparesetupsothattheforcesontheshaftduetocompressionineachstageareopposedtoreducingtheloadonthebearings. LookingforNASHparts,serviceorrepairs?TheTCpumpmodelisavailableforquickshipmentinmostregionsandisapartofourUnitExchangeprogramforpumpswapout.ContactNASHCertifiedServiceforsparepartsandpumpavailabilityandpricing. SuctionCapacity: 100to2,200ACFM(170to3,700m 3 /h) VacuumRange: to0.8inHgA(to30mbarabs.) ShaftSeals: StuffingBox(standard),MechanicalSeals(singleacting/doubleacting)orCartridgeonrequest MaterialsofConstruction: CastIron,DuctileIron,StainlessSteel LiquidRingVacuumPump TwoStage,TC Capacity100to2,200ACFM(170to3,700m3/h) TheNASHTCtwostageliquidringvacuumpumpseriesofferhighlyreliableandefficientsolutionsforpower,chemicalandpetrochemicalapplications.Designedtohandlelargeamountsofliquidcarryoverwithoutdifficulty,theTCpumpdeliversreliable,long-lastingperformanceunderthemostdemandingapplications.Availablein9models,thecapacitiesoftheTCpumpsrangefromabout100to2,200ACFM(170to3,700
